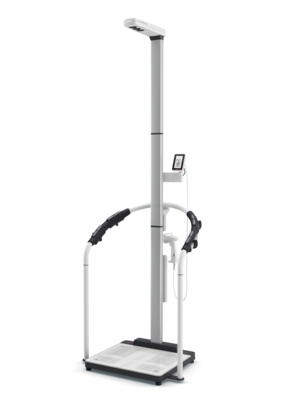

seca mBCA Ultra
Product Number ONIHMIUTNNMedical Body Composition Analyzer with ultrasonic height measurement
Order today, ships within 24 hours!
Quick Overview
Description
Technical Data
Accessories
Precision
- Basic
- Advanced
- Premium
Key-Technical Data
BIA measuring method8-point Bioelectrical Impedance Analysis
BIA measurement segmentsRight arm, left arm, right leg, left leg, right half of body, left half of body, torso
BIA measuring period24 seconds
BIA measuring frequency1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
Scope of Delivery
- BIA platform seca mBCA 554
- BIA handrail seca mBCA 550
- ID-Display™
- Power adapter
- Ultrasonic height measurement seca 257
Product Properties
- Unique accuracy through whole body MRI validation (skeletal muscle mass) and 4C model (fat mass)
- Validation studies are bundled and transparently published in the European Journal of Clinical Nutrition 2013/2017, among others
- Comprehensive, personalized normal ranges based on over 3,000 multiethnic subjects
- Specially developed formulas for children over 5 years and 1.30 m as well as people over 65 years and patients with obesity
- Handrail with fixed handle positions: measurements are reproducible and reliable
- Foot-mounted LEDs embedded in the platform show the various positions and give patients a sense of safety and orientation
- Cloud-based software with easily understandable graphics that guarantees a complete picture of the body composition
- Precise and contactless height measurement in seconds using the latest ultrasonic technology
Developed in conjunction with medical users
The seca mBCA Ultra is the BIA solution for the exceptionally accurate and user-friendly determination of body composition. Its unique validation against whole-body MRI (skeletal muscle mass) and 4C model (fat mass) ensures reliable and medically relevant results. The cloud-based software takes on all administrative tasks for you, thus allowing full focus on your patients. The handrail with fixed grip positions guarantees the reproducibility of the measurement conditions.
Precision
- Basic
- Advanced
- Premium
Key-Technical Data
BIA measuring method8-point Bioelectrical Impedance Analysis
BIA measurement segmentsRight arm, left arm, right leg, left leg, right half of body, left half of body, torso
BIA measuring period24 seconds
BIA measuring frequency1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
Scope of Delivery
- BIA platform seca mBCA 554
- BIA handrail seca mBCA 550
- ID-Display™
- Power adapter
- Ultrasonic height measurement seca 257
Technical Data
Capacity360 kg
800 lbs
800 lbs
Graduation50 g
0.1 lb
0.1 lb
Measuring range60 - 220 cm
1 ft 12 inch – 7 ft 2 inch
1 ft 12 inch – 7 ft 2 inch
Measuring range with attached handrail100 - 220 cm
40 - 87 inch
40 - 87 inch
Graduation measuring range1 mm
1/8 inch
1/8 inch
Power supplyPower adapter
Turn-off time with power supplyNo switch off
InterfacesEthernet
USB for barcode scanner
Wi-Fi
USB for barcode scanner
Wi-Fi
Softwareseca analytics 125
Optionsultrasonic height measurement
Net weight67.2 lbs
30.5 kg
30.5 kg
Product width33.0 inch
839 mm
839 mm
Product height94.0 inch
2,387 mm
2,387 mm
Product depth25.6 inch
650 mm
650 mm
Platform width23.6 inch
600 mm
600 mm
Platform height2.8 inch
70 mm
70 mm
Platform depth18.4 inch
467 mm
467 mm
BIA measuring method8-point Bioelectrical Impedance Analysis
BIA measurement segmentsRight arm, left arm, right leg, left leg, right half of body, left half of body, torso
BIA measuring period24 seconds
BIA measuring frequency1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
BIA measuring electricity100 µA
Age5 - 99 years
Body heightmin. 51 inch
Functions and Properties
- Display of user and patient name or ID
- Display date of birth patient
- TARE
- Pre-TARE
- HOLD
- Auto-HOLD
- CLEAR
- Auto-CLEAR
- RESET
- lbs/kg switch-over
- cm/inch switch-over
- Adjustable damping
- Auto-BMI
- Standby mode
- Wi-Fi
- Ethernet
- 8 point measurement
- Confirm button
- Acoustic signals can be activated
- Customizable shortcut buttons
- Backlighting
