Coming soon!
seca XLine Fold
Product Number 620 3400 009Wall-mounted fold-up wheelchair scale
Available in November. Request now!
Quick Overview
Description
Technical Data
Precision
- Basic
- Advanced
- Premium
Key-Technical Data
Capacity500 kg
1,100 lbs
1,100 lbs
Graduation100 g
0.2 lb
0.2 lb
Net weight331.0 lbs
115 kg
115 kg
Product width70.6 inch
1,794 mm
1,794 mm
Product height66.0 inch
1,677 mm
1,677 mm
Product depth58.9 inch
1,497 mm
1,497 mm
Scope of Delivery
- Power adapter
Product Properties

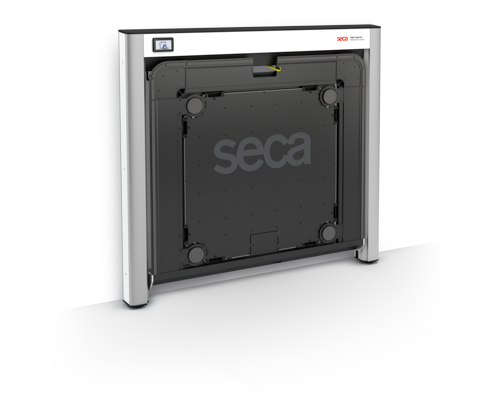

- Folds up flat to save critical floor space in tight, high-traffic care areas

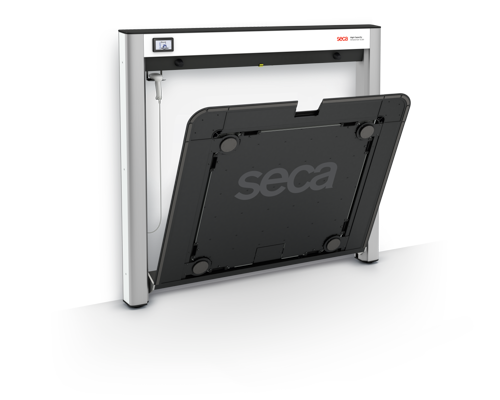

- Gas-spring powered deployment eliminates heavy lifting, pinching, or strain—keeping nurses safe from the start
- Oversized platform with low-incline ramps: 43.3" x 43.3" surface easily accommodates bariatric wheelchairs and transport chairs
- Built to handle bariatric demands: supports up to 1,100 lbs with rock-solid stability for safe weighing
- Tare-by-Scanning function instantly subtracts the stored weight of wheelchairs—streamlining workflow and reducing manual steps
- Recall function, re-weigh function, and multi-side access simplify weighing in fast-paced environments

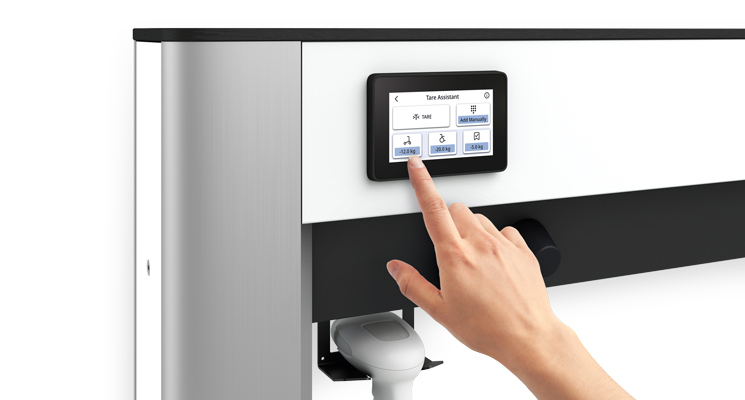

- Enhanced ID-Display™ with improved user guidance, smart tare handling and optional EMR functions such as user and patient identification
- Direct EMR-Validated Integration: Enhances dosing accuracy and reduces documentation errors with real-time weight transmission

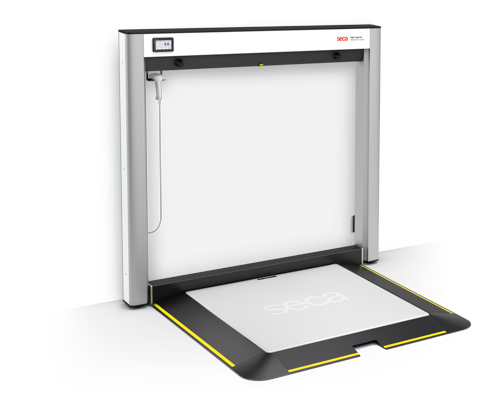

Unfold Maximum Capability—Without Sacrificing Space

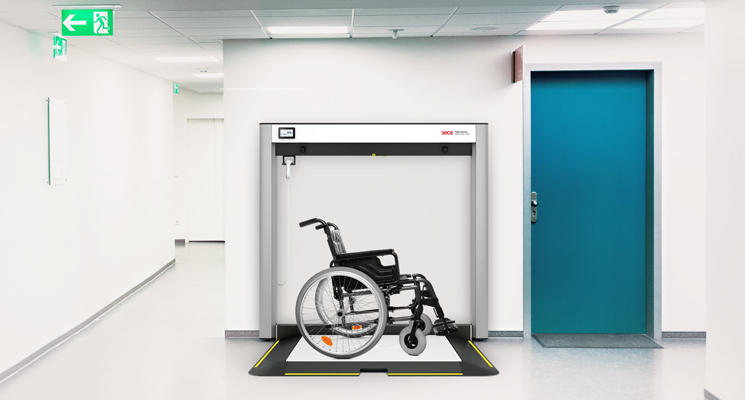

Delivering a full-size, bariatric-ready platform right at the point of care, the seca XLine Fold enables efficient, on-the-spot weighing for patients in wheelchairs, transport chairs, or walkers. Its fold-up design preserves floor space and minimizes the need for patient transfers—saving time, reducing strain, and improving workflow in high-traffic areas. Secure wall-mounting and gas-spring powered deployment eliminates heavy lifting and pinching—keeping nurses safe from the start. Smart features include a Recall function to retrieve the last recorded weight and Pre-TARE memory to store up to three preset deductions—ideal for commonly used mobility aids.
Precision
- Basic
- Advanced
- Premium
Key-Technical Data
Capacity500 kg
1,100 lbs
1,100 lbs
Graduation100 g
0.2 lb
0.2 lb
Net weight331.0 lbs
115 kg
115 kg
Product width70.6 inch
1,794 mm
1,794 mm
Product height66.0 inch
1,677 mm
1,677 mm
Product depth58.9 inch
1,497 mm
1,497 mm
Scope of Delivery
- Power adapter
Technical Data
Capacity500 kg
1,100 lbs
1,100 lbs
Unitkg/lbs
TARE-Range500 kg
1,100 lbs
1,100 lbs
Graduation100 g
0.2 lb
0.2 lb
Possible weighings15000
Power supplyPower adapter
Turn-off time with power supplyNo switch off
Turn-on time with activated HOLDNo switch off
InterfacesEthernet
Wi-Fi
RS-232 (optional)
Wi-Fi
RS-232 (optional)
Display4.3" touchscreen
Digit size0.5 inch
13 mm
13 mm
Net weight331.0 lbs
115 kg
115 kg
Product width70.6 inch
1,794 mm
1,794 mm
Product height66.0 inch
1,677 mm
1,677 mm
Product depth58.9 inch
1,497 mm
1,497 mm
Product depth (folded)6.2 inch
157 mm
157 mm
Platform width43.3 inch
1,100 mm
1,100 mm
Platform height2.2 inch
57 mm
57 mm
Platform depth43.3 inch
1,100 mm
1,100 mm
Ramp3_integriert
Functions and Properties
- Display of user and patient name or ID
- Recall
- Display date of birth patient
- TARE
- Pre-TARE
- HOLD
- Auto-HOLD
- CLEAR
- Auto-CLEAR
- RESET
- lbs/kg switch-over
- lbs/kg switch-over lock
- cm/inch switch-over
- Adjustable damping
- BMI
- BSA (Body surface area)
- Standby mode
- Wi-Fi
- Ethernet
- Patient data input
- Confirm button
- Acoustic signals can be activated
- Backlighting
