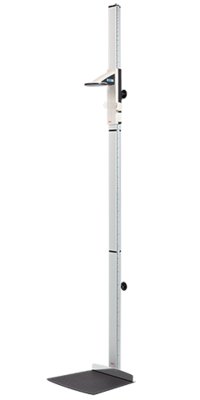

seca 264 - EMR ready stadiometer for permanent use, with display on the headpiece #0
seca 264 - EMR ready stadiometer for permanent use, with display on the headpiece #1
seca 264 - EMR ready stadiometer for permanent use, with display on the headpiece #2

seca 264

Product Number 264 1900 009

EMR ready stadiometer for permanent use, with display on the headpiece

seca 264
$ $ 1,181.31 Plus delivery costsShipping Costs
Above $ 100 order value: ‎$ 0
Below $ 100‎ order value: ‎$ 5
Out of Stock
Request a Demonstration
Quick Overview

Precision

  • Basic
  • Advanced
  • Premium

Key-Technical Data

Net weight11.0 lbs
5.0 kg
Measuring range30 - 220 cm
Product width16.9 inch
428 mm
Product height91.3 inch
2,318 mm
Product depth18.7 inch
474 mm

Scope of Delivery

  • 4 x AA batteries
Description

Product Properties

  • Network-capable with emr ready technology.
  • Digitally measures small children and adults.
  • Frankfurt Line for precise positioning of head.
  • White backlit LCD display in headpiece.
  • Non-slip rubber mat with heel positioner.

The new quality in height measuring is not only solid but also features wireless transmission.

The goal of accomplishing more in fewer steps is as important in medicine as in other fields. The stadiometer seca 264 helps make that possible. For example, the heel positioner and the seca Frankfurt Line on the headpiece ensure that the patient is in the right position and thereby contribute to obtaining accurate measurements. Height measurements can be read with a quick glance at the white backlit display on the headpiece. Wireless data transmission is made to a seca digital printer with wireless transmission, a PC or a wireless scale.

Precision

  • Basic
  • Advanced
  • Premium

Key-Technical Data

Net weight11.0 lbs
5.0 kg
Measuring range30 - 220 cm
Product width16.9 inch
428 mm
Product height91.3 inch
2,318 mm
Product depth18.7 inch
474 mm

Functions and Properties

Scope of Delivery

  • 4 x AA batteries
Technical Data

Technical Data

Net weight11.0 lbs
5.0 kg
Measuring range30 - 220 cm
Platform width16.9 inch
430 mm
Platform height0.1 inch
3 mm
Platform depth14.6 inch
370 mm
Product width16.9 inch
428 mm
Product height91.3 inch
2,318 mm
Product depth18.7 inch
474 mm
Power supplyBatteries
Graduation measuring range1 mm
Batteries, quantity and type4 X AA

Functions and Properties

  • Acoustic signals can be activated
  • PRINT/Auto-PRINT
  • SEND/Auto-SEND
  • Automatic switch-off
  • Calibration/automatic calibration
  • Heel positioner
  • Backlighting
  • cm/inch switch-over
  • RESET
  • Stable aluminum construction
  • Wall mounting required
Application Tips

How can I accurately measure the height of a person standing?

Height-measuring instruments from seca make measuring easy, fast and precise.

  • The patient stands barefoot (if possible) with his/her back to the wall.
  • With feet together, ensure the heels are touching the wall.
  • The body is erect and centered on the measuring rod.
  • Confirm the corner of the eyes and the top of the ears are level (Frankfurt Line).
  • To measure, the user places the headpiece against the scalp and locks it.

Accessories

Accessories

System

System

This product is compatible with all EMR systems and with the following EMR ready seca products.
