seca XLine Base
Product Number ONSWXINTNNEMR-validated wheelchair scale with optional third ramp
Delivery Time on Request
Quick Overview
Description
Technical Data
Precision
- Basic
- Advanced
- Premium
Key-Technical Data
Capacity500 kg
1,100 lbs
1,100 lbs
Graduation100 g
0.2 lb
0.2 lb
Net weight122.1 lbs
55.4 kg
55.4 kg
Product width60.0 inch
1,523 mm
1,523 mm
Product height4.6 inch
117 mm
117 mm
Product depth48.0 inch
1,220 mm
1,220 mm
Scope of Delivery
- Two ramps seca seca 404
- Guard rail seca 446
- Guard rail with castors seca 448
- Display holder seca 476
- ID-Display™ seca 496
- Platform scale (110 x 110 cm) seca 604
Product Properties
- XXL dimensions and capacity to accommodate bariatric wheelchairs
- Built to withstand the highest loads with a capacity of 1,100 lbs
- Extra low profile ensures a smooth and safe transition for wheelchair access onto the platform
- Third ramp available: upgrade your seca xline and further improve accessibility

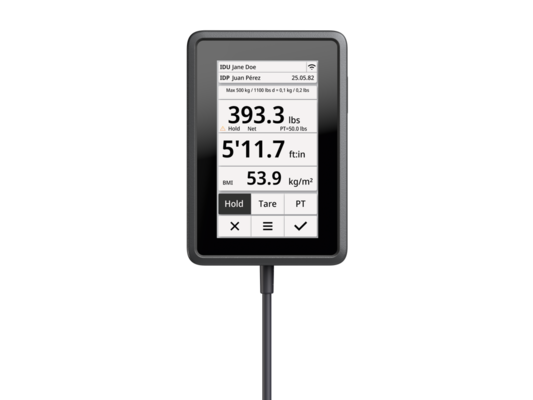

- Tailor your experience by choosing between the basic display or the ID-Display™ with EMR-interface
- Tare-by-Scanning: simplify the weighing process by taring out the weight of the wheelchair by scanning its barcode
- Optional: handrail equipped with an antimicrobial coating to enhance safety or serve as a standing aid
- EMR-validated, enabling seamless data transmission directly to an Electronic Medical Record (EMR) system or to a printer
Effortless Weighing for Bariatric Patients
The seca XLine, with its sleek profile, substantial capacity, and expansive platform, reimagines the weighing experience for bariatric patients in wheelchairs. Healthcare personnel benefit from simplified tasks, enabling quick, secure, and uninterrupted patient care. Safety takes precedence, thanks to guardrails, a skid-proof surface, and an optional ramp for increased accessibility. The Tare-by-Scanning function further streamlines the weighing process by effortlessly taring out the pre-stored weight of the wheelchair through barcode scanning. Choose from two interface options – for EMR integration or non-integrated weighing – ensuring a seamless fit with your specific workflow requirements.
Precision
- Basic
- Advanced
- Premium
Key-Technical Data
Capacity500 kg
1,100 lbs
1,100 lbs
Graduation100 g
0.2 lb
0.2 lb
Net weight122.1 lbs
55.4 kg
55.4 kg
Product width60.0 inch
1,523 mm
1,523 mm
Product height4.6 inch
117 mm
117 mm
Product depth48.0 inch
1,220 mm
1,220 mm
Scope of Delivery
- Two ramps seca seca 404
- Guard rail seca 446
- Guard rail with castors seca 448
- Display holder seca 476
- ID-Display™ seca 496
- Platform scale (110 x 110 cm) seca 604
Technical Data
Capacity500 kg
1,100 lbs
1,100 lbs
Unitkg/lbs
TARE-Range500 kg
1,100 lbs
1,100 lbs
Graduation100 g
0.2 lb
0.2 lb
Possible weighings15000
Power supplyPower adapter
Turn-off time with power supplyNo switch off
Turn-on time with activated HOLDNo switch off
Cable length118.0 inch
3.0 m
3.0 m
InterfacesEthernet
USB for barcode scanner
Wi-Fi
USB for barcode scanner
Wi-Fi
Digit size0.4 inch
9 mm
9 mm
Net weight122.1 lbs
55.4 kg
55.4 kg
Product width60.0 inch
1,523 mm
1,523 mm
Product height4.6 inch
117 mm
117 mm
Product depth48.0 inch
1,220 mm
1,220 mm
Platform width43.3 inch
1,100 mm
1,100 mm
Platform height2.2 inch
55 mm
55 mm
Platform depth43.3 inch
1,100 mm
1,100 mm
Ramp2 ramps included
Functions and Properties
- Display of user and patient name or ID
- Display date of birth patient
- TARE
- Pre-TARE
- HOLD
- Auto-HOLD
- CLEAR
- Auto-CLEAR
- RESET
- lbs/kg switch-over
- lbs/kg switch-over lock
- cm/inch switch-over
- Adjustable damping
- BMI
- BSA (Body surface area)
- Standby mode
- Wi-Fi
- Ethernet
- Patient data input
- Confirm button
- Acoustic signals can be activated
- Backlighting
