seca Scale-up Line

Product Number ONSHMIUTNN

EMR-validated handrail scale with ID-Display and optional height measurement

seca Scale-up Line
$ $ 3,332.00 Plus delivery costsShipping Costs
Above $ 100 order value: ‎$ 0
Below $ 100‎ order value: ‎$ 5
Order today, ships within 24 hours!
Buy from a Dealer
Quick Overview

Precision

  • Basic
  • Advanced
  • Premium

Key-Technical Data

Net weight63.9 lbs
29.0 kg
Product width31.5 inch
801 mm
Product height94.0 inch
2,387 mm
Product depth25.6 inch
650 mm
Graduation50 g
0.1 lbs
Capacity360 kg
800 lbs

Scope of Delivery

  • ID-Display
  • Power adapter
  • Flat scale seca 654
  • Handrail seca 455
  • Ultrasonic height measurement seca 257
Description

Product Properties

  • Display shows user and patient names or IDs for increased patient safety
  • Outstanding precision and high-speed measuring thanks to perfected ultrasound technology
  • Large platform made of tested seca Bearclaw Glass® for absolute breakage resistance and perfect hygiene
  • Illuminated LED footprints in the weighing platform show patients the correct standing position for accurate height measurement
  • Voice guidance to support the measurement process
  • Safe weighing with a stable handrail
  • Optional panda bear facilitates measuring and weighing of children
  • EMR-validated: transmit measured data directly to any electronic medical record system or printer

State-of-the-art height measurement

The seca Scale-up Line is probably the most modern and future-oriented way to determine height and weight. Firstly, because of the contactless, fast and highly precise ultrasound measurement. Secondly, because of the ID display that displays the names or IDs of patients and users during data transfer into the digital patient file (EMR). This means that this measuring station from the seca Scale-up Line is the ideal choice for EMR-integrated weighing and measuring.

Precision

  • Basic
  • Advanced
  • Premium

Key-Technical Data

Net weight63.9 lbs
29.0 kg
Product width31.5 inch
801 mm
Product height94.0 inch
2,387 mm
Product depth25.6 inch
650 mm
Graduation50 g
0.1 lbs
Capacity360 kg
800 lbs

Scope of Delivery

  • ID-Display
  • Power adapter
  • Flat scale seca 654
  • Handrail seca 455
  • Ultrasonic height measurement seca 257
Technical Data

Technical Data

Optionswith handrail and ultrasonic height measurement
Net weight63.9 lbs
29.0 kg
Measuring range100 - 220 cm
40 - 87 inch
Platform width23.6 inch
600 mm
Platform height2.8 inch
70 mm
Platform depth18.4 inch
467 mm
Product width31.5 inch
801 mm
Product height94.0 inch
2,387 mm
Product depth25.6 inch
650 mm
PortsLAN
USB bar code scanner
Wi-Fi
Power supplyPower adapter
Graduation50 g
0.1 lbs
Graduation measuring range1 mm
1/8 inch
Capacity360 kg
800 lbs
Measuring range with attached handrail100 - 220 cm
40 - 87 inch

Functions and Properties

  • EMR-validated
  • Wi-Fi
  • Acoustic signals can be activated
  • Auto-BMI
  • Auto-CLEAR
  • Auto-HOLD
  • Extra rugged
  • Confirm button
  • CLEAR
  • Adjustable damping
  • Backlighting
  • HOLD
  • cm/inch switch-over
  • Mother+child function
  • Pre-TARE
  • RESET
  • TARE

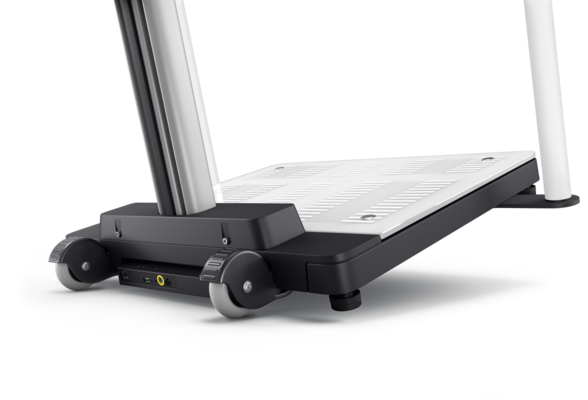

  • Transport wheels
  • Display of user and patient name or ID
  • Display date of birth patient
  • Rotatable and tiltable display
  • Ethernet
  • Standby mode
  • Touchscreen
  • lbs/kg switch-over
  • Auto-BSA (Body surface area)
  • Customizable shortcut buttons
