new
  • Product design
seca Scale-up Line - EMR-validated ultrasonic measuring station with ID-Display™ #0
seca Scale-up Line - EMR-validated ultrasonic measuring station with ID-Display™ #1
seca Scale-up Line - EMR-validated ultrasonic measuring station with ID-Display™ #2
seca Scale-up Line - EMR-validated ultrasonic measuring station with ID-Display™ #3
seca Scale-up Line - EMR-validated ultrasonic measuring station with ID-Display™ #4

seca Scale-up Line

Product Number ONSMMIUTNN

EMR-validated ultrasonic measuring station with ID-Display™

seca Scale-up Line
$ $ 3,299.00 Plus delivery costsShipping Costs
Above $ 100 order value: ‎$ 0
Below $ 100‎ order value: ‎$ 5
Order today, ships within 24 hours!
Buy from a Dealer
Quick Overview

Precision

  • Basic
  • Advanced
  • Premium

Key-Technical Data

Capacity360 kg
800 lbs
Graduation50 g
0.1 lb
Net weight48.5 lbs
22.0 kg
Product width23.6 inch
600 mm
Product height94.0 inch
2,387 mm
Product depth24.2 inch
614 mm

Scope of Delivery

  • ID-Display
  • Power adapter
  • Flat scale seca 654
  • Ultrasonic height measurement seca 257
Description

Product Properties

  • Display shows user and patient names or IDs for increased patient safety
  • Outstanding precision and high-speed measuring thanks to perfected ultrasound technology
  • Large platform made of tested seca Bearclaw Glass® for absolute breakage resistance and perfect hygiene
  • Illuminated LED footprints in the weighing platform show patients the correct standing position for accurate height measurement
  • Voice guidance to support the measurement process

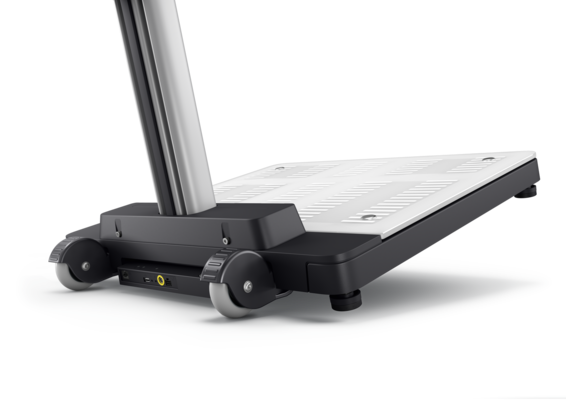

  • Convenient transport with extremely robust rubber wheels
  • Optional animal sticker facilitates measuring and weighing of children
  • EMR-validated: transmit measured data directly to an electronic medical record system or printer

State-of-the-art height measurement

The seca Scale-up Line is probably the most modern and future-oriented way to determine height and weight. Firstly, because of the contactless, fast and highly precise ultrasound measurement. Secondly, because of the ID-Display™ that displays the names or IDs of patients and users during data transfer into the digital patient file (EMR). This means that this measuring station from the seca Scale-up Line is the ideal choice for EMR-integrated weighing and measuring.

Precision

  • Basic
  • Advanced
  • Premium

Key-Technical Data

Capacity360 kg
800 lbs
Graduation50 g
0.1 lb
Net weight48.5 lbs
22.0 kg
Product width23.6 inch
600 mm
Product height94.0 inch
2,387 mm
Product depth24.2 inch
614 mm

Scope of Delivery

  • ID-Display
  • Power adapter
  • Flat scale seca 654
  • Ultrasonic height measurement seca 257
Technical Data

Technical Data

Turn-off time with power supplyNo switch off
Capacity360 kg
800 lbs
Graduation50 g
0.1 lb
Power supplyPower adapter
Optionsultrasonic height measurement
InterfacesEthernet
USB for barcode scanner
Wi-Fi
Net weight48.5 lbs
22.0 kg
Product width23.6 inch
600 mm
Product height94.0 inch
2,387 mm
Product depth24.2 inch
614 mm
Platform width23.6 inch
600 mm
Platform height2.8 inch
70 mm
Platform depth18.4 inch
467 mm
Measuring range60 - 220 cm
24 - 87 inch
Graduation measuring range1 mm
1/8 inch

Functions and Properties

  • Display of user and patient name or ID
  • Display date of birth patient
  • TARE
  • Pre-TARE
  • HOLD
  • Auto-HOLD
  • CLEAR
  • Auto-CLEAR
  • RESET
  • lbs/kg switch-over
  • lbs/kg switch-over lock
  • cm/inch switch-over
  • Adjustable damping
  • Auto-BMI
  • Auto-BSA (Body surface area)
  • Mother+child function
  • Standby mode
  • SEND/Auto-SEND
  • Wi-Fi
  • Ethernet
  • Confirm button
  • Acoustic signals can be activated
  • Customizable shortcut buttons
  • Backlighting
